Architectural Drawing and Design Tools That Do the Heavy Lifting

Why Architectural Drawing and Design Is the Foundation of Every Successful Renovation

Architectural drawing and design is the process of creating scaled, technical representations of a building — from early concept sketches all the way to the detailed plans that contractors use on-site.

If you’re looking for the right tools to get started, here’s a quick overview:

Tool	Best For	Skill Level
Revit	Full BIM modeling and team collaboration	Professional
AutoCAD	Precise 2D and 3D drafting	Intermediate–Professional
Cedreo	Residential builders and contractors	Beginner–Intermediate
SketchUp	3D conceptual modeling	Beginner–Intermediate
SmartDraw	Quick diagramming and simple floor plans	Beginner
Draw.archi	AI-powered sketch-to-drawing conversion	Beginner

Every renovation — no matter how large or small — starts with drawings. They tell contractors where to build walls, where to run electrical lines, and how every part of the structure fits together.

Without them, projects go over budget, timelines slip, and costly mistakes get made on-site rather than on paper.

One experienced architect put it simply: the goal is to control and direct as many design decisions as possible in the studio, where a change costs nothing, rather than on the construction site, where it can cost thousands.

For homeowners planning a major renovation, understanding the tools and documents behind your project isn’t just interesting — it’s genuinely useful. It helps you ask better questions, spot gaps in a contractor’s process, and feel confident in the decisions being made on your behalf.

This guide walks through the best architectural drawing tools available today, how they compare, and what a complete, professional drawing set actually looks like.

Essential architectural drawing and design terms:

• architectural design process from concept sketches to construction drawings
• architecture plan drawing

The Evolution of Architectural Drawing and Design: From Ink to AI

Architectural drawing has undergone a massive transformation over the last century. Historically, draftsmen worked standing up at massive angled desks, meticulously laying out lines with ink on vellum or tracing paper. This manual constraint forced architects to be incredibly deliberate. Making a mistake or altering a layout meant scraping ink off paper with a razor blade or completely restarting the sheet—an entirely painful process that nobody wanted to experience twice.

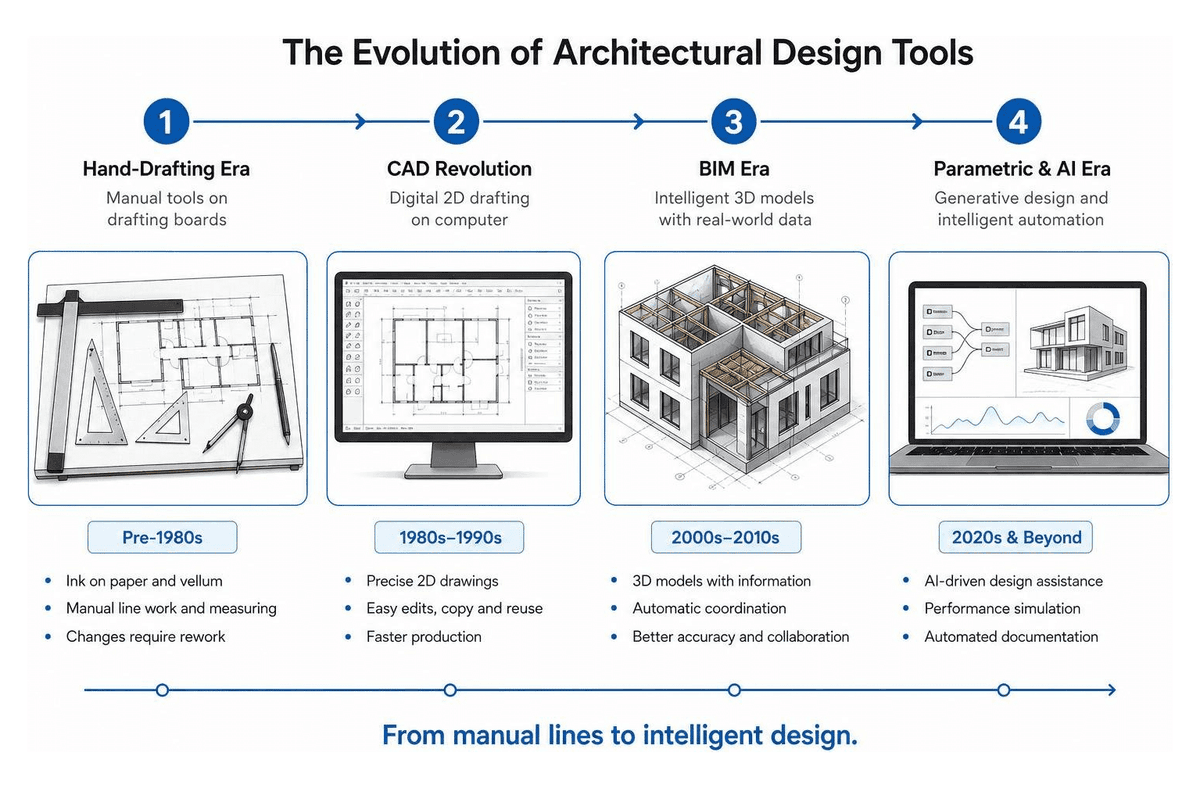

As we look at the design landscape in July 2026, the industry has evolved through several distinct technical eras:

1. The Hand-Drafting Era: Characterized by physical tools like T-squares, triangles, and compasses. Every line weight was controlled by hand pressure and technical pen sizes.
2. The CAD (Computer-Aided Design) Revolution: Moving from physical boards to digital screens. This shift allowed for easy copying, pasting, and editing, though it initially remained focused on 2D lines.
3. The BIM (Building Information Modeling) Era: Transitioning from drawing flat lines to modeling intelligent, 3-dimensional components (like walls, windows, and doors) that carry real-world data and coordinate with each other automatically.
4. Parametric Design and AI: Today, procedural thinking, algorithmic rules, and artificial intelligence help automate repetitive drafting tasks, simulate environmental performance, and generate structural layouts instantly.

While digital execution is the gold standard for accuracy, many design professionals still argue that analog tools—a simple pencil and paper—remain the best medium for birthing ideas. The digital space is limitless, but creativity often thrives on constraints.

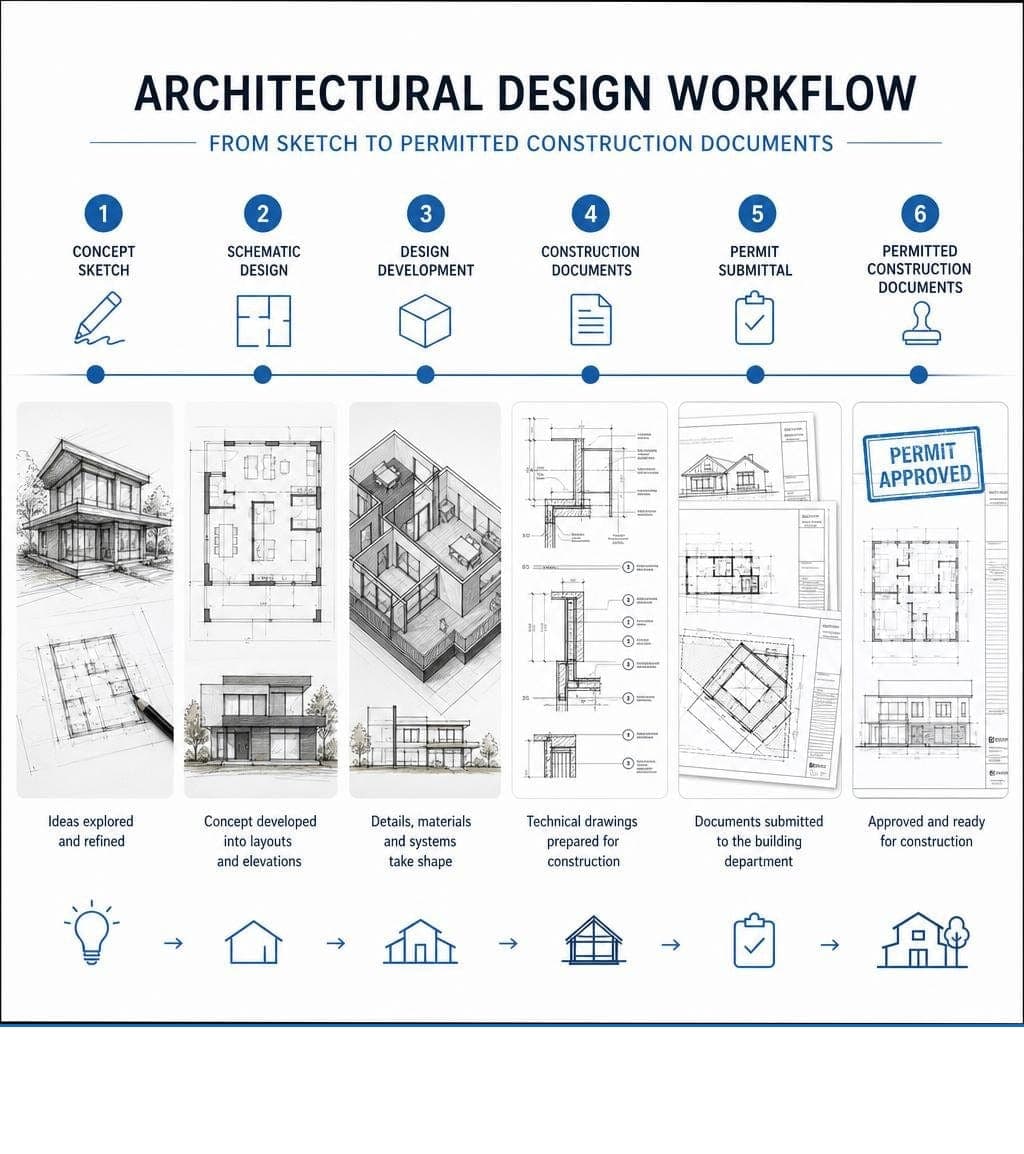

To understand how these concepts bridge the gap between initial inspiration and real-world construction, it helps to look at How Architects Turn Rough Sketches Into Real Construction Drawings.

From Napkin Sketches to Schematic Design

Every great building starts as a spark of inspiration, famously captured on the back of a cocktail napkin or a quick sketchpad page. These initial concept sketches and functional diagrams are not meant to be technically accurate; rather, they are tools for “thinking out loud.” They establish relationships between spaces, analyze how natural light enters a site, and map out basic traffic flow.

This early phase relies heavily on pre-design storytelling and simulation. Before diving into rigid CAD grids, designers must build a narrative about how the home will be used.

For example, when planning a renovation in historic Evanston or a modern layout in Lakeshore East, the design team must perform a rigorous site analysis. This involves studying local zoning regulations, wind patterns, and the sun’s path to ensure the design fits harmoniously into its context.

To streamline this transition, professionals use specialized software during the Architectural Schematic Design | Autodesk phase. This software acts as a digital bridge, translating loose, hand-drawn concepts into structured spatial relationships. It allows designers to test spatial scales, evaluate environmental impacts, and establish the overall aesthetic direction before committing to detailed technical drawings.

Essential Software Tools for Modern Architectural Drawing and Design

Choosing the right software depends entirely on the scale of the project, the user’s technical expertise, and whether the goal is quick visualization or deep construction documentation.

• Revit: Autodesk’s flagship BIM software is the undisputed industry leader for professional-grade architectural design. Revit allows architects to model and document a building simultaneously. When you change a window’s size in a 3D view, every associated floor plan, elevation, section, and schedule updates automatically. This ensures flawless coordination across multidisciplinary teams. Learn more about how professionals leverage these capabilities at Revit for Architecture & Building Design | Autodesk.
• AutoCAD: The classic standard for precise 2D drafting. While Revit has taken over for complex building design, AutoCAD remains incredibly popular for detailed detailing and quick, flat layout adjustments.
• Cedreo: A highly accessible, cloud-based 3D home design software tailored for builders and remodelers. Cedreo bypasses the steep learning curve of traditional CAD, allowing users to draw 2D plans and generate photorealistic 3D renderings in a fraction of the time.
• Draw.archi: An innovative, AI-powered tool that converts hand-drawn sketches into CAD-ready vector files. By recognizing walls, doors, and zones, it applies architectural logic to rough sketches, allowing for rapid design iterations using natural language commands.
• SmartDraw: Used by over 85% of the Fortune 500, SmartDraw is a versatile diagramming tool that offers easy-to-use templates and extensive symbol libraries. It is perfect for office managers planning commercial layouts or homeowners mapping out simple residential floor plans.

Feature	Revit	AutoCAD	Cedreo	SmartDraw
Primary Focus	3D BIM & Documentation	2D/3D Drafting	3D Home Design & Renderings	Simple 2D Floor Plans
Learning Curve	Steep	Moderate to Steep	Low	Very Low
Automation	High (Global updates)	Low (Manual updates)	High (Auto 3D views)	Low (Static templates)
Best For	Complex renovations	Construction details	Client presentations	Quick spatial layouts

Anatomy of an Architectural Drawing Set: Types and Conventions

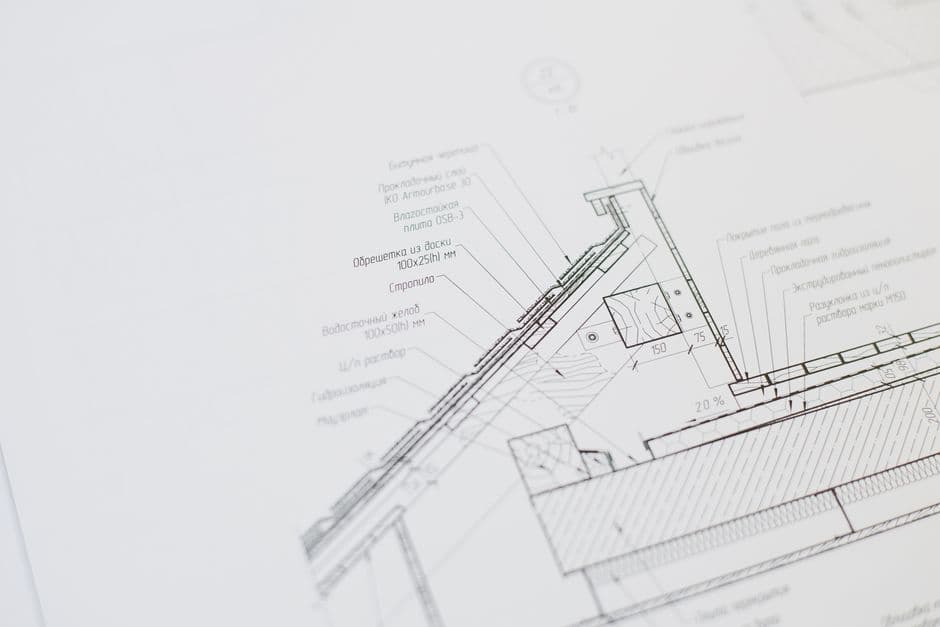

A complete architectural drawing set is a highly coordinated package of information. To the untrained eye, it looks like a confusing maze of lines, symbols, and text. However, it is actually a carefully organized language with over 13 core types of drawings.

A standard set typically includes:

• Site Plans: A high-level view showing the property lines, topography, utilities, and how the building sits on the land.
• Floor Plans: A horizontal slice cut through the building—conventionally at about 4 feet (1.2 meters) above the floor level—viewed from above, showing room layouts, door swings, and wall thicknesses.
• Elevations: Flat, 2D views of the building’s exterior or interior walls, labeled by the compass direction they face (e.g., North Elevation).
• Cross-Sections: A vertical cut-through of the building, revealing the relationships between different floor levels and hidden structural systems.
• Detail Drawings: Large-scale close-ups (such as 1:10 or 1:5 scale) showing exactly how complex junctions, like a roof-to-wall connection, are physically assembled.
• Electrical & HVAC Layouts: Diagrams mapping out lighting fixtures, outlets, switches, and ductwork to ensure they do not conflict with structural beams.

Architectural Conventions, Scales, and Standards

To ensure that any licensed builder or plan examiner in Chicago or Evanston can read a drawing set, architects adhere to strict graphic standards and conventions.

• Paper Sizes: The largest paper size used in modern practice is ISO A0 (841 mm × 1,189 mm) globally, or Arch E (30 in × 42 in) and Large E (36 in × 48 in) in the United States. These large sheets are necessary to display massive amounts of detail clearly.
• Common Scales: Drawings must be perfectly proportional. Standard scales include 1:100 or 1:50 for floor plans and elevations, and 1:10 or 1:5 for intricate construction details.
• Line Weights: The thickness of a line communicates depth and material boundaries. Thick lines represent cut objects (like structural walls), medium lines show visible edges (like counter edges), and dashed lines indicate objects above or below the cut plane (like overhead ceiling beams).

Managing these files across a complex project requires rigorous organization. CAD managers and design-build teams rely on structured systems to keep track of every file, view, and sheet. To dive deeper into how these files are structured behind the scenes, read Autodesk’s guide About Concepts of Drawing Management.

How to Read and Interpret Architectural Drawing and Design Sets

Understanding how to read a drawing set is essential for keeping a renovation on track. Drawing sets are generally categorized into three distinct phases:

1. Presentation Drawings: Highly visual, often rendered in 3D, designed to help clients understand the spatial flow, materials, and overall aesthetic.
2. Working Drawings: Highly detailed, 2D technical plans used on the construction site. These include precise dimensions, structural notes, and material specifications.
3. Record (As-Built) Drawings: The final historical record documenting any changes made during construction, capturing the exact “as-built” reality of the finished home.

When reading these sheets, always look for the graphic hierarchy. Labels, room names, and dimensions should be clear and organized. To build your confidence in reading these documents, check out our practical guide on How to Read and Create Building Design Drawings Without Losing Your Mind.

Translating Design Concepts into Buildable Realities

The ultimate purpose of architectural drawing and design is to turn a creative vision into a physical, structurally sound home. This translation requires intense coordination between the architectural plans, structural engineering calculations, and MEP (mechanical, electrical, plumbing) systems.

In professional practice, the design team overlays these different systems on paper or in a shared 3D BIM model before breaking ground. This is where the magic happens: finding out that a massive steel support beam is running directly through a proposed plumbing stack is an easy, zero-dollar fix on a computer screen. If discovered on-site during framing, that same conflict can delay construction for weeks and cost thousands of dollars in structural alterations.

This level of detail is especially critical in local Illinois markets. For instance, projects in the historic North Shore require precise architectural expertise to work with the strict local guidelines. If you are planning a renovation in these areas, partnering with a team that specializes in Highland Park Architectural Drawings Design or Evanston Architectural Drawings Design ensures your plans comply with local municipal building departments and zoning boards from day one.

Improving Drawing Quality and Clarity

Beautiful drawings are not just artistic; they are functional communication tools. To improve the quality and readability of a drawing set, designers focus on several drafting techniques:

• Visual Hierarchy: Using a distinct contrast in lineweights so structural walls pop off the page, while dimension lines and hatch patterns remain subtle.
• Smart Use of White Space: Avoiding the temptation to crowd a single sheet with too much information. Leaving clean margins and breathing room around floor plans drastically reduces reading errors.
• Clear Annotations: Using consistent text styles, clear leader lines, and standard architectural symbols to make notes easy to read at a glance.
• Strict Graphic Standards: Adhering to universal guidelines so that any general contractor, subcontractor, or municipal inspector can interpret the drawings without confusion.

Frequently Asked Questions about Architectural Drawings

What is the difference between a floor plan and a cross-section?

A floor plan is a horizontal cut through a building, typically taken at 4 feet above the floor level, looking straight down to show the arrangement of rooms, doors, and walls. A cross-section is a vertical cut through the building, as if you sliced it in half with a giant saw, showing the relationships between different floors, ceiling heights, and structural framing layers.

Why do architectural drawings include the note “Do not scale off dimensions”?

Physical paper prints can stretch or shrink slightly due to humidity, and digital copying processes often introduce minor distortions. If a builder uses a physical ruler to measure directly off a printed drawing, they might get an inaccurate measurement. The disclaimer “Do not scale off dimensions” protects the project by forcing the construction crew to rely strictly on the explicit, written numerical dimensions on the sheet.

How do modern 3D renderings compare to traditional 2D blueprints?

Traditional 2D blueprints are highly technical, precise documents essential for permitting, structural engineering, and actual construction. However, they can be incredibly difficult for the average homeowner to visualize in three dimensions. Modern 3D renderings bridge this gap, offering photorealistic visualizations of materials, lighting, and spatial flow, allowing clients to experience their new space before construction even begins.
